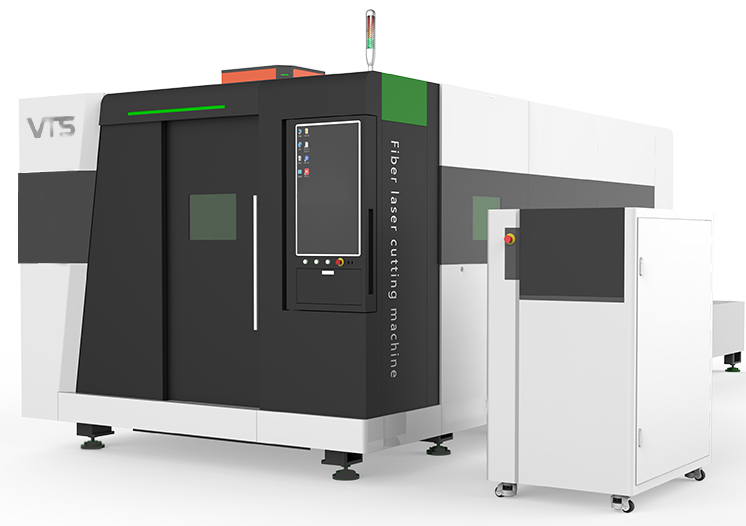

The HP-Series is an extremely versatile machine, equipped with a professional system that connects all components through EtherCat technology, offering functionality, precision, and reduced costs for your parts.
Key Features
______________________________
Cast aluminum beam

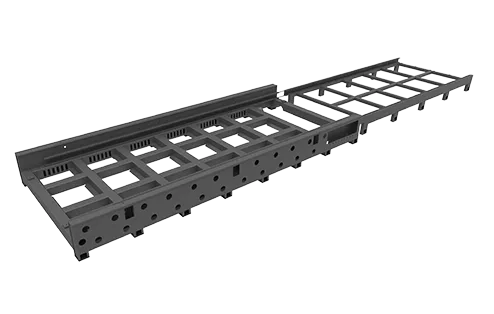

Rigid machine frame
The machine frame is welded from carbon steel sheets with thicknesses ranging from 12-20 mm, followed by heat treatment and milling to ensure high precision at high speeds.
Advanced smoke exhaust system
The machine features an advanced smoke exhaust system that generates additional pressure inside while selectively opening the exhaust flaps in the area where the laser head is located, ensuring efficient smoke evacuation and maintaining a controlled atmosphere within the machine.

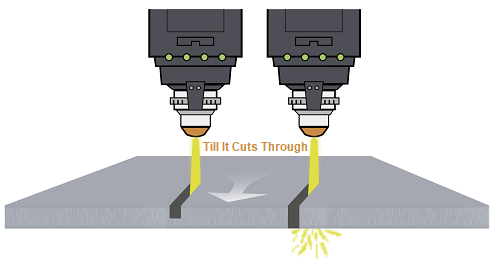

Auto Recut
Automatic recutting is performed when the sensor integrated into the machine's head detects the presence of plasma in real-time.

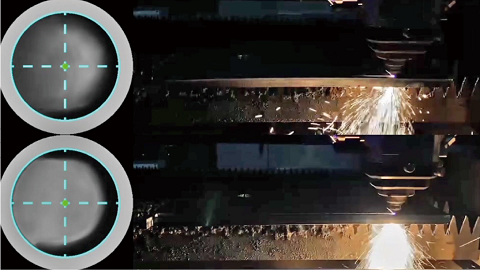

Cutting Path Monitoring

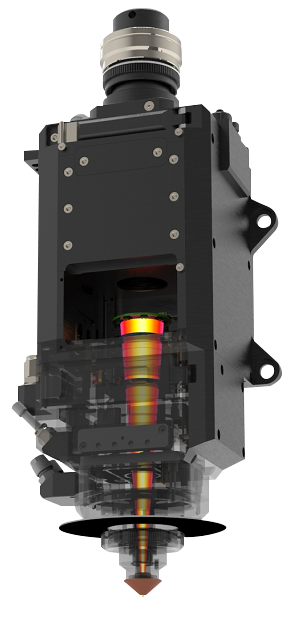

The system monitors the quality of the cut using the cutting head's internal sensor and dynamically adjusts the parameters in real time to enhance both performance and efficiency.
Protective Lens Monitoring
An advanced algorithm, coupled with the sensor, effectively safeguards the protective lens against cracks resulting from contamination.
Technical data
______________________________
| Model | HP1530 | HP4020 | HP6025 |
|---|---|---|---|
| Laser Power | 6000w,12000w,24000w | 6000w,12000w,24000w | 6000w,12000w,24000w |
| XYZ effective size mm | 1520*3050*150 | 2020*4020*150 | 2550*6050*150 |
| Max sheet weight | 900kg | 1800kg | 3500kg |
| XYZ-axis positioning accuracy | 0,05mm/m | 0,05mm/m | 0,05mm/m |
| XYZ-axis repositioning accuracy | 0,03mm | 0,03mm | 0,03 |
| Acceleration | 1,5G | 1,5G | 1,5G |
| Max speed on X/Y-axis | 120m/min | 120m/min | 120m/min |
| Connection 3 phase | 220/380V 50Hz | 220/380V 50Hz | 220/380V 50Hz |
Choose the power you need
Max thickness Carbon steel with O2 - 20 mm
Max thickness Stainless steel with Air/N2 - 10 mm
Max thickness Aluminum with N2/Air - 8 mm
Max thickness Carbon steel with O2 - 25 mm
Max thickness Stainless steel with Air/N2 - 20 mm
Max thickness Aluminum with N2/Air - 16 mm
Max thickness Brass with N2 - 12 mm
Max thickness Copper - 6 mm
Max thickness Carbon steel with O2 - 40 mm
Max thickness Stainless steel with Air/N2 - 40 mm
Max thickness Aluminum with N2/Air - 40 mm
Max thickness Brass with N2 - 16 mm
Max thickness Copper - 10 mm
Nesting software
______________________________
CypNest is an optimized nesting software designed for the laser sheet cutting system with HypCut. It incorporates advanced drawing modification functions, quick nesting, cutting path generation, analysis reports, and more to meet your production needs.
